4G LTE ANTENNA

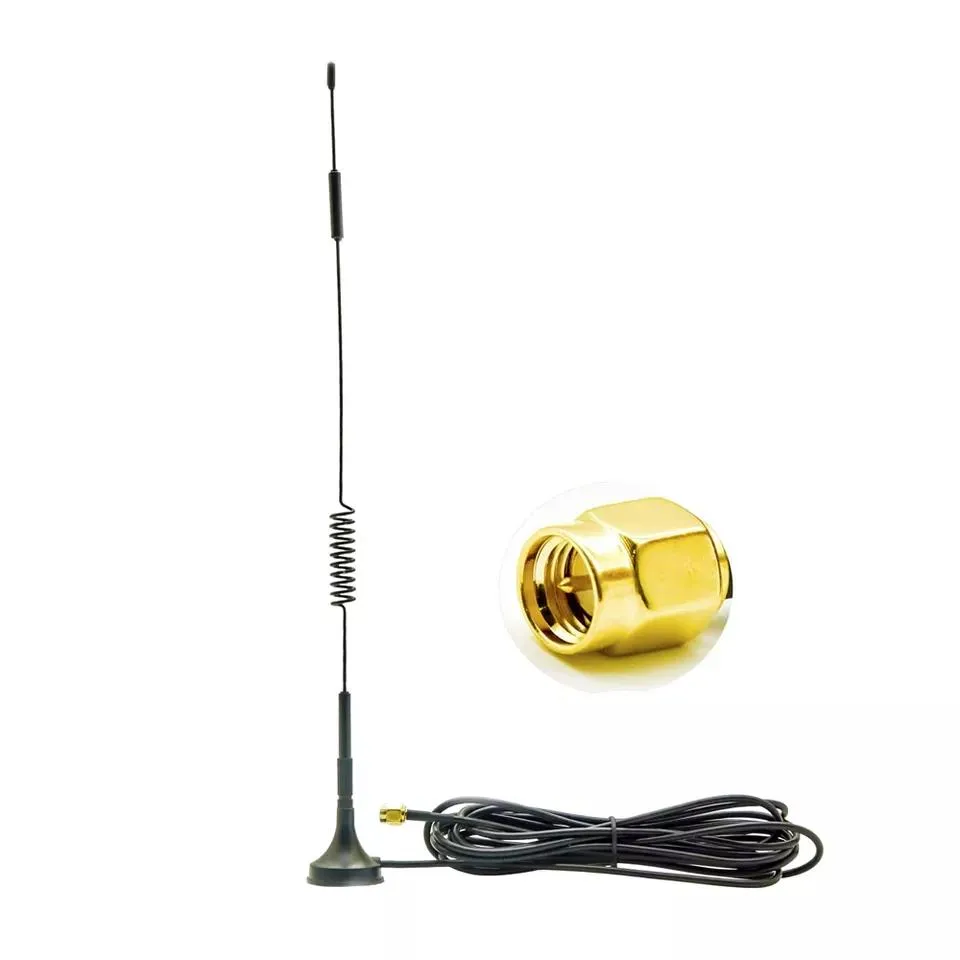

4G LTE 9dBi Magnetic Mount Antenna 470mm
High-gain magnetic mount 4G LTE antenna for gateways, terminals and industrial wireless equipment.
Model: WL-4GE470-3000
Frequency: 698-960 / 1710-2700 MHz
Gain: 9 dBi
Connector: SMA Male or customized
Product Overview
4G LTE 9dBi Magnetic Mount Antenna 470mm for OEM/ODM wireless projects, covering 698-960 / 1710-2700 MHz with 9 dBi gain and 50 Ω nominal impedance. Connector options: SMA Male or customized. Minsta supports project-specific antenna customization.
Key Features
- Frequency range: 698-960 / 1710-2700 MHz
- Gain: 9 dBi
- Connector: SMA Male or customized
- Impedance: 50 Ω
- OEM/ODM customization available
Specifications
| Model | WL-4GE470-3000 |
|---|---|
| Frequency Range | 698-960 / 1710-2700 MHz |
| Gain | 9 dBi |
| VSWR | ≤2 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Power | 50 W |
| Dimensions | 470 mm |
| Connector | SMA Male or customized |
| Operating Temperature | -40°C to +80°C |
| Material | To Be Confirmed |
| Customization | OEM / ODM available |
Applications
Cellular routers, gateways, IoT terminals, telemetry devices and industrial wireless equipment.
Customization Options
Connector, cable, frequency, housing, labeling and packaging can be customized according to project requirements.
